How to Showcase Product Color Swatches

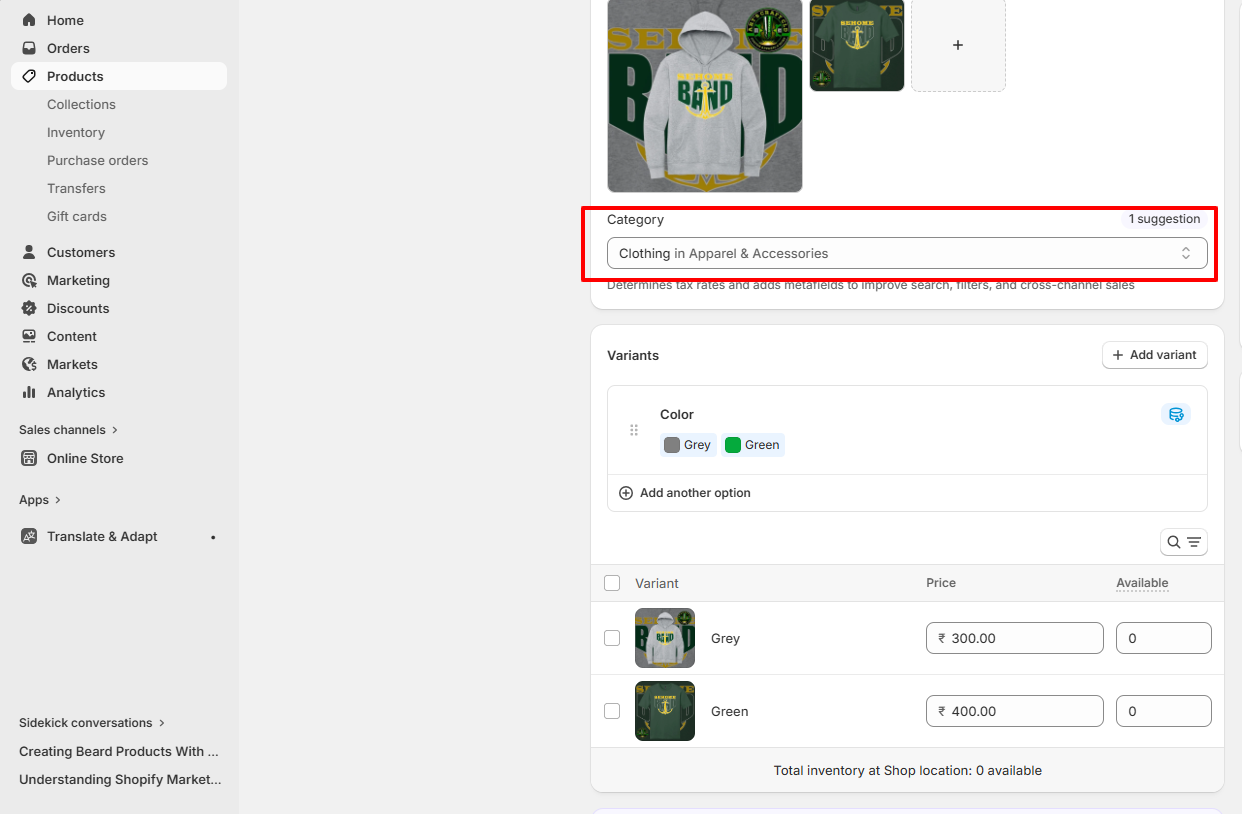

1. Assign a Product Category

Shopify enables category metafields (such as Color and Size) only after a product has an assigned category.

• From your Shopify admin, go to Products.
• Click the product you want to edit.
• In the Category section, click Browse categories.
• Select a relevant category.
• Click Save.

? Important: Only products with assigned categories can use category metafields.

2. Configure the Color Metafield

After assigning a category, configure the available values for the Color metafield.

• From Shopify admin, go to Settings ? Custom data ? Categories.
• Click the category you assigned earlier.
• Locate the Color metafield and click Manage entries.
• Add new color entries:
  • Enter a color name (e.g., Red, Blue).
  • Optionally upload a swatch image or enter a color hex code (e.g., #FF0000).
• Click Save.

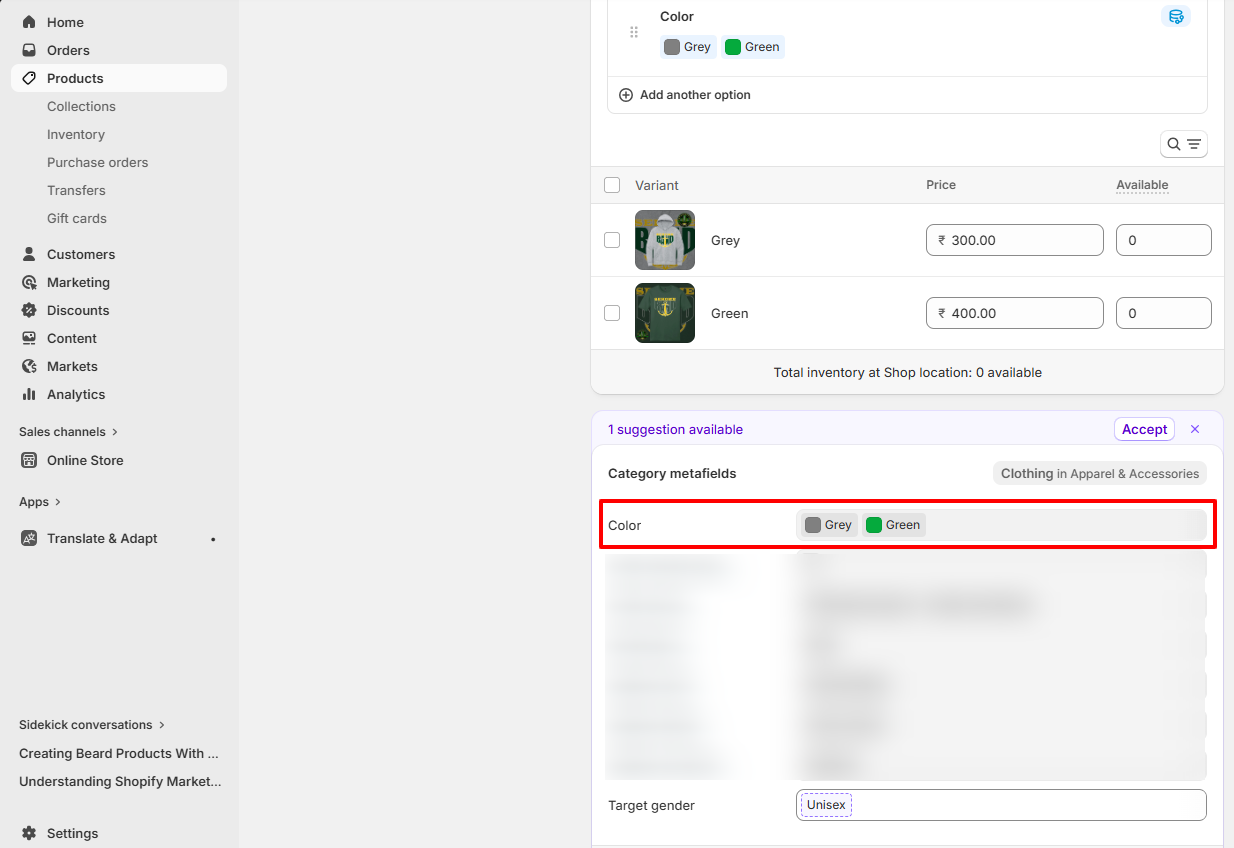

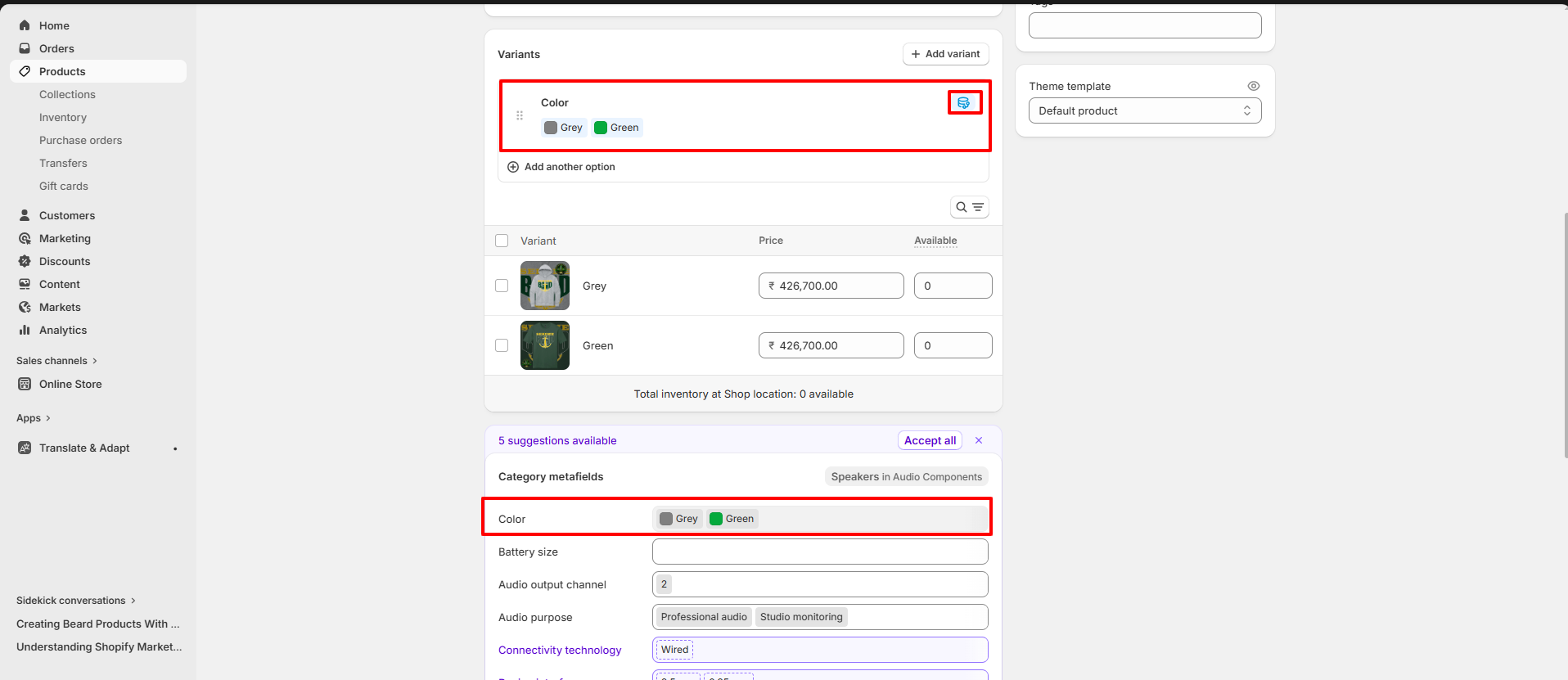

3. Connect the Color Metafield to Variant Options

Now link your product�s Color option to the configured metafield.

• Open your product from the Products section.
• Under Variants, click Add options like size or color.
• In Option name, type Color.
• Click the dynamic source icon (??).
• Select the Color category metafield.
• Assign each variant the correct metafield entry (e.g.,Grey,Green).

• Click Done and then Save.

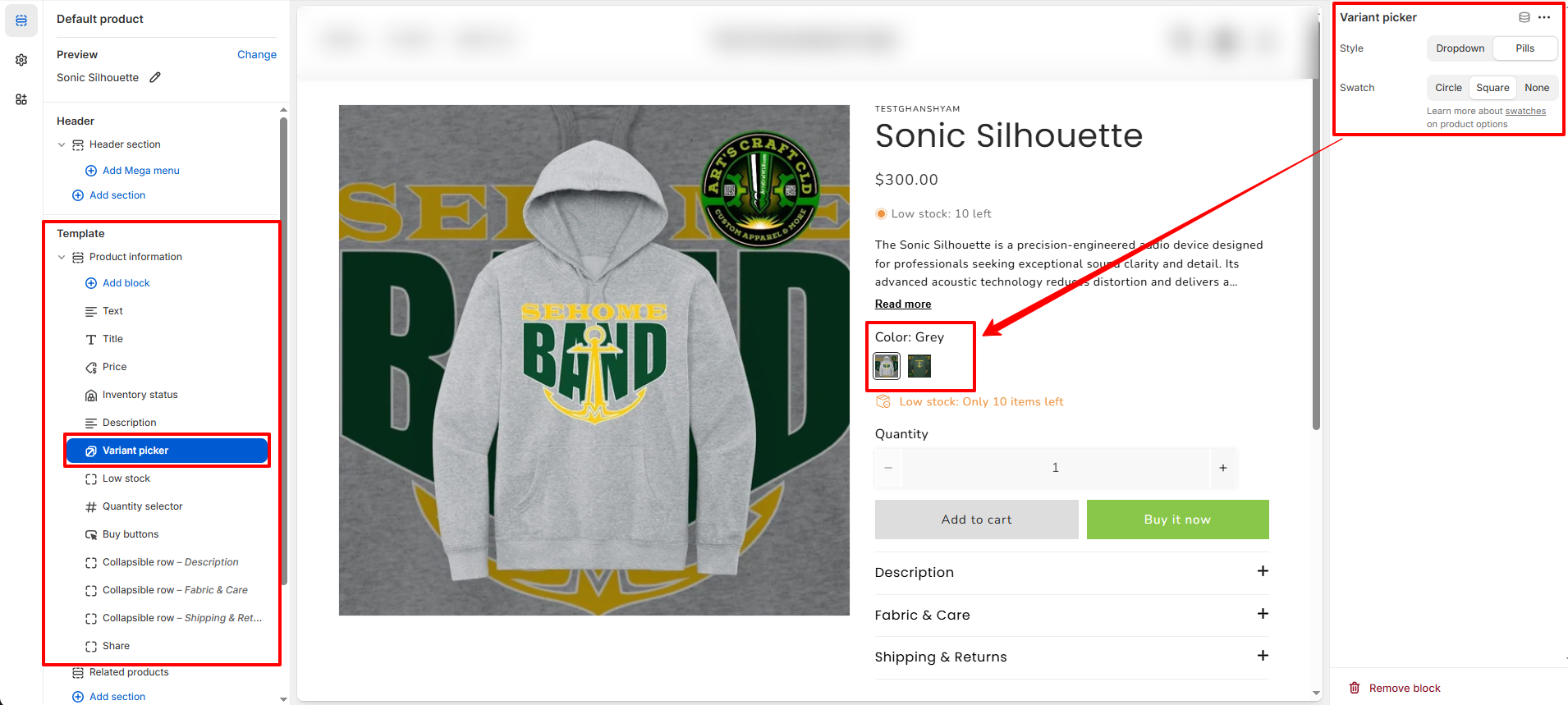

4. Set Up Swatch Shape in Emoll Theme

You can configure the swatch shape for variants in product.

• Go to Online Store ? Themes.
• Click Customize on the Emoll theme.
• Select the product
• In the left sidebar, click Product Information.
• Select the Variant Picker block.
• Under Variant Picker settings, choose your preferred swatch shape:
  • Circle � Displays circular color swatches.
  • Square � Displays square color swatches.
  • Default � Uses the theme�s default swatch styling.
• Click Save to apply the changes.

Read more about adding color swatches using category metafields

? Note: Swatch shape settings in Emoll are controlled per product template via the Variant Picker block.
